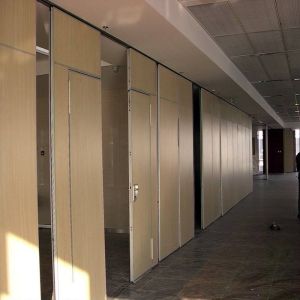

    Customized Movable Acoustic Sliding Partition Walls Panel Width 500mm

    Ask Lasest Price
    Brand Name : BANGE
    Model Number : 85 mm sliding partition walls
    Certification : ISO9001
    Price : US Dollars 80 - 120 per square meters
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 square meters per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Customized Movable Acoustic Sliding Partition Walls Panel Width 500mm

    Movable Acoustic Partition Walls, Soundproofing Office Partitions, Sliding Partition Walls


    Features:


    1)Thickness panel:65mm,85mm,100mm, height from 2meter to 17meter


    2)Top supported without floor track or guide


    3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available


    4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster

    base board on both side


    5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.


    6) available in wide range of finishes.


    7) Fast delivery and Rich experiences in oversea project installation guide & supervision.

    Customized Movable Acoustic Sliding Partition Walls Panel Width 500mm


    Specifications for sliding partition walls


    1)Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.

    2)To ensure additional friction connection, shall be integrated with magnetic strip.

    3)Sliding partition walls are easy element adjustment after installation.

    4)Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.


    5) Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;


    6) The operation ways is much easier, it’s better than the old ways which was use spring before;


    7) We can add single or double doors on the board for convenience;


    8) We have many different finish to meet customer different requirement and get different decoration effect.

    Customized Movable Acoustic Sliding Partition Walls Panel Width 500mm

    Description of the whole system
    Itemmovable partition systems
    Partition Height2-17 meters
    Sound Transmission Class(STC)32-55db
    Description of accessories
    RollerImported dupont POM material roller,bearing capacity 225-1300kg
    Track SystemClear anodized 6063-T6 aluminum double track
    Surface finish optionMDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect.
    Junction"T"junction, "L" juntion, cross/ "X" juntion

    About us


    Guangzhou Bunge Building Decoration Engineering Co.,Ltd is a professional company in manufacturing Movable Partitions.It also artistically designs and carefully does research and development,.The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staff with more than 10 years of experience in design,production and installation.


    BUNGE movable partition wall is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65 mm ,85 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 17 meters tall.
