85 mm Thickness Auditorium Operable Soundproof Walls Doors With
Modern Interior Design
The product description
Sound insulation movable wall is hanging on ceiling , able to
right-angle turn 90 degrees freedom to travel, can flexibly to
promote to other collection space, can need according to different
space use, the interval of the multiple independent small space. he
vertical contact of each single partition is connected by concave
and convex positions, embedded with sealing tape, and the upper and
lower top are equipped with a telescopic sound insulation sealing
mechanism. he sound transmission is well considered, which greatly
improves the sound insulation seal of the partition.
Partition model has 65 (65mm thick), 85 (85mm thick), 100 (100mm
thick), ultra high type, partition datum material has gypsum board,
medium fiber board, glass magnesium board, color steel plate,
sound-absorbing board, melamine board and other panels to choose
from, its structure and frame using 6063-t6 reinforced aluminum
alloy production.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 8000 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door |
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum |
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl
/Painting /etc,(Customized) |

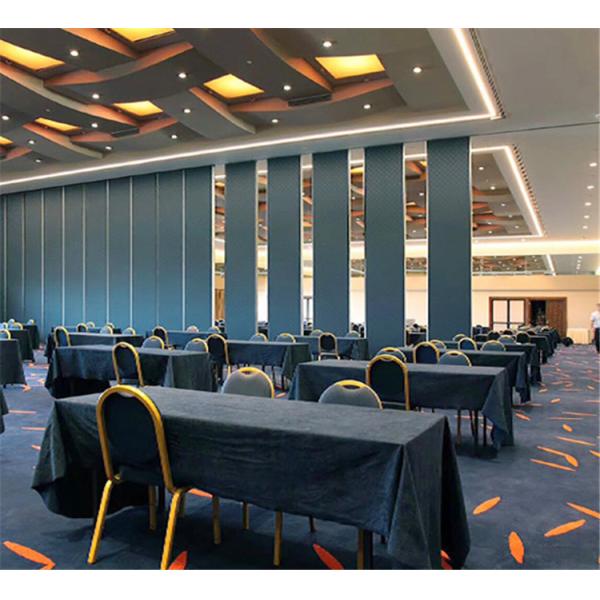

Case show
Banquet Hall High Sound Proof Movable Partitions Project in Uganda
Thanks for the trust from a nice client,who is from Uganda.
Ultra-high System Movable Walls Project in Lebanon
The ultra-high system movable walls we produced have a leading
standard level at home and abroad, adopting super-strong rails,
imported hanging wheels, special-made barges and automatic guiding
systems, with a height of up to 18m and a sound insulation
coefficient of up to 55db.
Conglatulations for finishing a banquet hall partitions project in
Sri Lanka
This is a big and famous banquet hall in Sri Lanka.It is about 5800
square meters area,2 floors.
Sliding Partition Walls Tracks and Wheels Project in Colombia
Thanks for the appreciation and trust from our Colombian Client.
Features & Benefits
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of
panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent
movement
The system offers various levels of sound reduction
Available in a wide range of colors and finishes, including:
Vinyl, fabric, Leather,
Natural wood veneer, Melamine,
Wood moldings, etc.
About us
Guangdong Bunge Building Material Industrial Co.,Ltd is a
professional company in manufacturing Movable Partition Walls
System. We are the real manufacturer, we have our own factory and
showroom in Guangzhou, China, which covers an area over 3000 m2.
And we have around 10 years experience in it. There is a ultra-high
system sample in our factory, over 8 meters. Every client who came
to our factory was amazing in it. BUNGE Factory is always providing
the clients with nice quality and competitive price movable wall
system , and we are so strict to inspect the quality before
delivering. So far, we have exported to USA, Australia Uganda,
Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other
countries.
As a professional manufacturer, we not only produce, we also
design, deliver and have the after-sales service for clients. If
the client need installation service, we also can send our
technicians to supervise the installation. In addition, we also can
supply Free design to every client and we will reply in 12 hours if
the clients have any questions.
