Specification
1)Foldind slid wall interlocking male / female trapezoidal vertical
aluminium profiles, for soundproof connection between elements.
2 Foldind slid wall to ensure additional friction connection, shall
be integrated with magnetic strip.
3)Foldind slid room partition is easy element adjustment after
installation.
4)Foldind slid room partition movable wall track system shall be
Extruded aluminium, maintenance free with heavy -duty ball bearing
steel rollers.
5)Foldind slid room partition movable wall surface panel shall be
of 9 mm or 12 mm MDF with acoustic treatment to the required level.
Technical data of Type 80 movable partition :
| Model | Weight
(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier |
Thickness
(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) |
| EG80-40 | 30 | 60 | 40db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60#
80# 100# |
| EG80-45 | 38 | 60 | 45db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 |
| EG80-48 | 47 | 60 | 48db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 |
Features:
Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of
panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent
movement
The system offers various levels of sound reduction
Extensive range of surface finishes available
SCOPE OF APPLICATION
1.Studios, recording rooms, listening rooms, rehearsal rooms and
more professionally inter space timbre projects.
2.Theaters, indoor gymnasiums, discos, KTV rooms and more
performance and entertainment location.
3.Meeting rooms, offices, halls, hotels and more sound absorption
and secrecy projects.
4.Air-port, railways, bus-stops, manufactures, workshops and more
noise reduction projects.
1 , Who We Are---
More than 10 years of experience in building industry.
2 , What Can We Do---
Providing high quality products in a wide variety of styles and
sides for all custom, Window&Door, Partition Wall at
competitive price. Also we can provide the professional solution
for your reference based on your project request.
3 , Who Do We Work With---
We mainly worked with the developer, contractor, home owner,
designer and the architect. Worked for New Building Residential,
Commercial and individual Houses or house renovate.anyone are
interested in products
4 , Which Countries Do We Worked In---
Till now we have done projects in Singapore, Malaysia, Philippines
Australia, America, Canada, UK, Sweden, Norway, Maldives,
Mauritius, British Virgin, Haiti, Thailand, Ghana, Kenya etc.
5, Why Choose Us---
(1) Customized as your requirement;
(2) Free design,we could offer you solutions as your budget;
(3) One stop service,besides design,production,we could also
arrange shipping for you;
(4) We have professional team can go to your jobsite to make
measurement work and installation guide work.

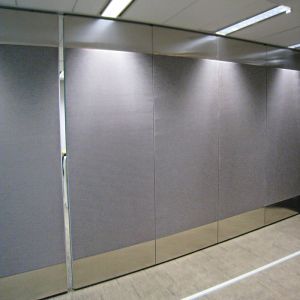

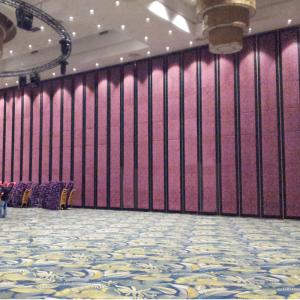

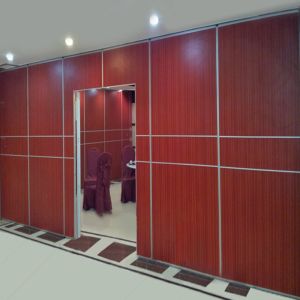

The GreatFold movable partition wall has the following
characteristics
1. No rail suspension: the floor has no track, just install the
track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not
easy to swing;
3. Compartment environmental protection: the effect of the
compartment is good, the maximum sound i
nsulation coefficient can reach 50db;
4. Insulation and energy saving: excellent thermal insulation
performance, according to different occupancy
rates, the hall is divided into small spaces to reduce air
conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency
fireproof material and has good fireproof performance;
6. Beautiful and generous: the surface is arbitrarily decorated,
and can be combined with the interior decoration effect;
7. Retractable and flexible: the partition is freely retractable
and flexible, and one person can complete
the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can
be hidden in the special storage cabinet,
which does not affect the overall appearance;
9. Wide range of applications: products used in hotels, hotels,
restaurants, conference halls, exhibition halls,
high clean factories and offices.
