Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall

Ask Lasest Price
Brand Name :	EBUNGE
Model Number :	65 mm soundproof partition door
Certification :	ISO 9001
Price :	$86-105 per square meter.
Payment Terms :	T/T, Western Union, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 square meters per month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall

Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall

1.Details

1)Aluminium movable partition wall has interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.

2)To ensure aluminum movable partition wall additional friction connection, shall be integrated with a magnetic strip.

3)Aluminium movable partition wall is an easy element adjustment after installation.

4)Aluminium movable partition wall rack system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.

5)Aluminium movable partition wall surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

2.Specification

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M

3.Finished and Accessories

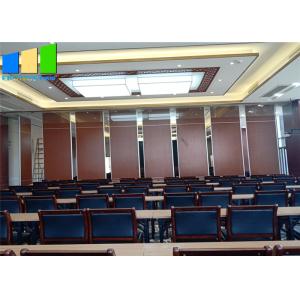

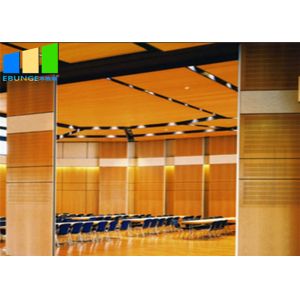

Different surface use in different areas.Our main surface is MDF with Melamine, it can be used in the Classroom, Restaurant, and so on, it's easy to maintain. Fabric and PU leather surfaces is very popular in the conference room and hotel banquet hall. In the dancing room, clients usually prefer a mirror surface. Also we can design surface based on fabric or PU leather with modern printing photos.If clients prefer to paint color on panels, we suggest MDF bare finish, it's also very welcomed, because it can make wallpaper, painting on site.

Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall

4.About Us
Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions.It also
artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA, Germany and Denmark.We have professional staffs with more than 10 years of experience in design, production and installation.
Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.
Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound Proof Series:85MM,100MM;
3.Super High Series:Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame.
