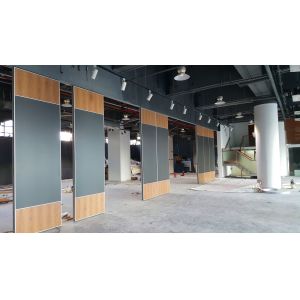

Foldable Soundproof Material Operable Wall Economical Restaurant Sliding Partitions

Description:

The sliding partition wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels. It depends on the horizontal hanging wheel to make the hanging travel along the track. It can make a 90 degree right angle turn and travel freely.

Promote to other space collections, according to different space use needs, separated by multiple independent small space. The vertical contact points of each single piece partition are connected by concave and convex positions. The sealant strips are embedded and the upper and lower tops are equipped with a retractable soundproof seal mechanism.

Technical information:

Surface treatment:

The standard colour for the track profile of the folding wall and the jamb profiles is white and the panels edge profiles are natural anodized.

There is a wide variety of panel surface treatments.

As a special solution it is possible to install a glass opening in the center of the panel. The opening can cover the whole panel, the bottom or the top.

Feature:

1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;

2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;

4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;

5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance.

Introduction:

The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.

Movable wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts.

Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.

Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partitions, Folding Doors, Sliding Doors, Office Furniture. We also artistically designs and carefully do research and development (R&D).

Ebunge company has adopted the advanced partition technology of USA, Germany and Denmark. We have a professional staff with more than 10 years of experience in design, production, and installation. Also, have a good after-sale system and team.

Our products (Movable Partitions and Acoustic Panels) are widely used in hotel banquet halls, meeting rooms, exhibition halls, conference rooms, international convention centers, KTVs, upscale restaurants, office buildings, schools, hospitals auditoriums, stadiums,s and so on.

Nowadays, the modern trend in buildings needs more flexibility and convenience, acoustic and soundproof to use the space of their rooms. Most of building designers like to prepare an open-plan space, with soundproof effects, and easy to operate. The solution to the designer's need is the Movable Partitions and Acoustic Panels..

The movable partition walls can be customized with various surface finishes, such as melamine, MDF, Plywood, fabric and PU leather. Top hanging system with only ceiling but no floor tracks so it can be pushed and pulled everywhere easily according to the direction of tracks. The most popular panel thickness is 85mm and its height can be up to 6 meters. Both wooden and glass operable walls are available in our factory which can meet different requirements of our customers.

Movable Wall Manufacturer
◆Individual panels can be stored away for maximum space usage.
◆Operable top and bottom seals for effortless operation.
◆Aluminum frame construction for enhanced acoustics.
◆The system offers various levels of sound reduction
◆Unique track and carrier system ensuring quiet and easy operation.
◆Numerous panel stacking options for complete flexibility.
◆Top hung and no floor track.
◆Extensive range of surface finishes can be available.

Movable partition wall production

We Offer:

◆ A full professional design service

◆ Survey and installation guide

◆ Using top quality materials and components

◆ A fully experienced work team

◆ Maintenance contracts to ensure your valuable asset remains in full work order.

Movable partition wall loading container

Movable partition wall loading container
