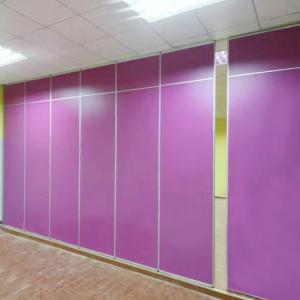

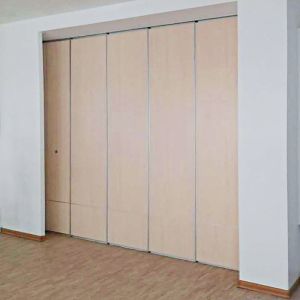

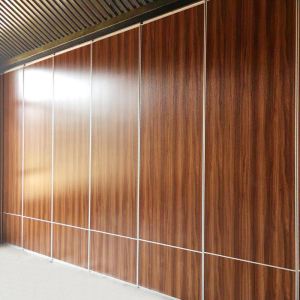

Melamine Surface Hanging System Movable Sliding Acoustic Partition
Walls
Details of Acoustic Partition Walls System
1. Poduction: 5000 squre meter per month;
2. All of the acoustic partitions are customized;
3. Three series for different choice:
65mm—up to 4ms H, 85mm—up to 6ms H, 100mm—up to 13ms H;
4. Panels width: 600mm to 1200mm, also can 2ms width for special
request;
5. Panels height: up to 13ms height.
6. Panels thickness: 65mm—(2 9/16)”, 85mm—(3 3/8)”, 100mm—(3
15/16)”,
7. Sound proof: from 20db to 53db.
Bunge's reputation for quality and reliable products, clever
designs and an insistence on excellent service is the reason why
architects, engineers and contractors routinely insist on Bunge
partition walls for their building projects.
Specifications of BUNGE Acoustic Partition Walls System
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical
dept. | Up to 6000mm, heights greater than 6000mm refer to our technical
dept. Inset passing doors above 2400mm. Full height passing door up
to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 17000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Surface material | 9mm | 9mm | 12mm |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-52dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Features of BUNGE Acoustic Partition Walls System
1. Movable, interlocking panels suspended from an overhead track
system.
2. Sound rated panels for effective noise control.
3. Available in paired (folding) and individual (omni-directional)
configurations.
4. Can include access doors for easy entry and exit.
5. Blend with a room's aesthetics, similar to a permanent wall when
extended.
6. Available in a wide range of colours and finishes, including:
MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall
paper, Wood mouldings, etc.
We Offer:
1) A full professional design service.
2) Survey and installation guide.
3) Using top quality materials and components.
4) A fully experienced work team.
5) Maintenance contracts to ensure your valuable asset remains in
full work order.
6) Modern, Comfortable, Elegant and endurable,
Environmentally-friendly materials.
7) Different styles with different material and price range,
control cost in the best way.
8) Customized service: OEM, ODM available.
Common Applications of Acoustic Partition Walls System
1. Studios, recording rooms, listening rooms, rehearsal rooms and
more professinally interspace timbre projects.
2. Theaters, indoor gymnasiums, discos, KTV rooms and more
performance and entertainment location.
3. Meeting rooms, offices, halls, hotels and more sound absorption
and secrecy projects.
4. Air-port, railways, bus-stops, manufactories, workshops and more
noise reduction projects.
